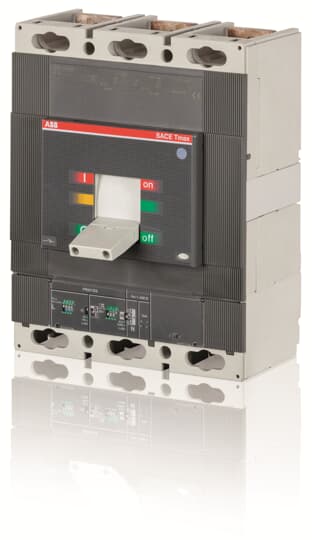

ABB 1SDA060537R1 Moulded Case Circuit Breaker T6N 1000 PR221DS-LS/I In=1000 3p F F

ABB 1SDA060537R1 Moulded Case Circuit Breaker T6N 1000 PR221DS-LS/I In=1000 3p F F

$1,150.99

General Information Extended Product Type: T6N 1000 PR221DS-LS/I In=1000 3p F F Product ID: 1SDA060537R1 EAN: 8015644630522 Catalog Description: T6N 1000 PR221DS-LS/I In=1000 3p F F Long Description: C.BREAKER TMAX T6N 1000 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR221DS-LS/I R 1000 Dimensions Product Net Width: 210 mm...

image/svg+xml
ABB 1SDA060537R1 Moulded Case Circuit Breaker T6N 1000 PR221DS-LS/I In=1000 3p F F

ABB 1SDA060537R1 Moulded Case Circuit Breaker T6N 1000 PR221DS-LS/I In=1000 3p F F

General Information

  • Extended Product Type:
    T6N 1000 PR221DS-LS/I In=1000 3p F F
  • Product ID:
    1SDA060537R1
  • EAN:
    8015644630522
  • Catalog Description:
    T6N 1000 PR221DS-LS/I In=1000 3p F F
  • Long Description:
    C.BREAKER TMAX T6N 1000 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR221DS-LS/I R 1000

Dimensions

  • Product Net Width:
    210 mm
  • Product Net Height:
    268 mm
  • Product Net Depth / Length:
    103.5 mm
  • Product Net Weight:
    12.863 kg

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    305 mm
  • Package Level 1 Height:
    285 mm
  • Package Level 1 Depth / Length:
    370 mm
  • Package Level 1 Gross Weight:
    13.54 kg
  • Package Level 1 EAN:
    8015644630522

Additional Information

  • Electrical Durability:
    4000 cycle
    60 cycles per hour
  • Mechanical Durability:
    20000 cycle
    120 cycles per hour
  • Number of Poles:
    3
  • Power Loss:
    at Rated Operating Conditions per Pole 50 W
  • Product Main Type:
    SACE Tmax T
  • Product Name:
    Moulded Case Circuit Breaker
  • Product Type:
    Automatic Circuit Breaker
  • Rated Current (In):
    1000 A
  • Rated Impulse Withstand Voltage (Uimp):
    8 kV
  • Rated Insulation Voltage (Ui):
    1000 V
  • Rated Operational Voltage:
    690 V AC
  • Rated Service Short-Circuit Breaking Capacity (Ics):
    (220 V AC) 70 kA
    (230 V AC) 70 kA
    (380 V AC) 36 kA
    (400 V AC) 36 kA
    (415 V AC) 36 kA
    (440 V AC) 30 kA
    (500 V AC) 25 kA
    (690 V AC) 15 kA
  • Rated Ultimate Short-Circuit Breaking Capacity (Icu):
    (220 V AC) 70 kA
    (230 V AC) 70 kA
    (380 V AC) 36 kA
    (400 V AC) 36 kA
    (415 V AC) 36 kA
    (440 V AC) 30 kA
    (500 V AC) 25 kA
    (690 V AC) 20 kA
  • Rated Uninterrupted Current (Iu):
    1000 A
  • Release:
    PR221DS-LS/I
  • Release Type:
    EL
  • Short-Circuit Performance Level:
    N
  • Standards:
    IEC
  • Sub-type:
    T6
  • Suitable For:
    T6
  • Suitable for Product Class:
    Moulded Case Circuit Breakers
  • Terminal Connection Type:
    Fixed Circuit-Breakers
    Front
  • Test Voltage Max (Utest):
    3500 V
  • Version:
    F
