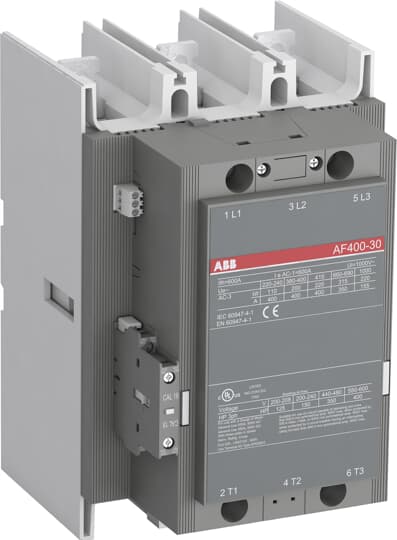

ABB AF400-30-11-70 100-250V 50/60Hz / 100-250V DC Contactor

$1,450.99

General Information Extended Product Type: AF400-30-11-70 Product ID: 1SFL577001R7011 EAN: 7320500217665 Catalog Description: AF400-30-11 100-250V 50/60Hz / 100-250V DC Contactor Long Description: The AF400-30-11-70 is a 3 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, controlling motors up to 200...

SKU :
Categories : All, Business & Industrial

ABB AF400-30-11-70 100-250V 50/60Hz / 100-250V DC Contactor

Description
Additional Information

General Information

Extended Product Type:

AF400-30-11-70
Product ID:

1SFL577001R7011
EAN:

7320500217665
Catalog Description:

AF400-30-11 100-250V 50/60Hz / 100-250V DC Contactor
Long Description:

The AF400-30-11-70 is a 3 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, controlling motors up to 200 kW / 400 V AC (AC-3) or 350 hp / 480 V UL and switching power circuits up to 600 A (AC-1) or 550 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

Dimensions

Product Net Width:

186 mm
Product Net Depth / Length:

216 mm
Product Net Height:

278 mm
Product Net Weight:

10.6 kg

Technical

Number of Main Contacts NO:

3
Number of Main Contacts NC:

0
Number of Auxiliary Contacts NO:

1
Number of Auxiliary Contacts NC:

1
Rated Operational Voltage:

Main Circuit 1000 V
Rated Frequency (f):

Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (I_th):

acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 600 A
Rated Operational Current AC-1 (I_e):

(1000 V) 40 °C 600 A
(1000 V) 55 °C 500 A
(1000 V) 70 °C 400 A
(690 V) 40 °C 600 A
(690 V) 55 °C 500 A
(690 V) 70 °C 400 A
Rated Operational Current AC-3 (I_e):

(415 V) 55 °C 400 A
(440 V) 55 °C 400 A
(500 V) 55 °C 400 A
(690 V) 55 °C 350 A
(1000 V) 55 °C 155 A
(380 / 400 V) 55 °C 400 A
(220 / 230 / 240 V) 55 °C 400
Rated Operational Power AC-3 (P_e):

(415 V) 220 kW
(440 V) 220 kW
(500 V) 250 kW
(690 V) 315 kW
(1000 V) 220 kW
(380 / 400 V) 200 kW
(220 / 230 / 240 V) 110 kW
Rated Breaking Capacity AC-3:

8 x Ie AC-3
Rated Making Capacity AC-3:

10 x Ie AC-3
Short-Circuit Protective Devices:

gG Type Fuses 630 A
Rated Short-time Withstand Current Low Voltage (I_cw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 4400 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 840 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 2500 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 4600 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 3100 A
Maximum Breaking Capacity:

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 4000 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 3500 A
Maximum Electrical Switching Frequency:

(AC-1) 300 cycles per hour
(AC-2 / AC-4) 60 cycles per hour
(AC-3) 300 cycles per hour
Rated Operational Current DC-1 (I_e):

(110 V) 1-Pole, 40 °C 600 A
(110 V) 2 Poles in Series, 40 °C 600 A
(220 V) 3 Poles in Series, 40 °C 600 A
(600 V) 3 Poles in Series, 40 °C 600 A
Rated Operational Current DC-3 (I_e):

(110 V) 1-Pole, 40 °C 600 A
(110 V) 2 Poles in Series, 40 °C 600 A
(220 V) 3 Poles in Series, 40 °C 600 A
(600 V) 3 Poles in Series, 40 °C 600 A
Rated Operational Current DC-5 (I_e):

(110 V) 1-Pole, 40 °C 600 A
(110 V) 2 Poles in Series, 40 °C 600 A
(220 V) 3 Poles in Series, 40 °C 600 A
(600 V) 3 Poles in Series, 40 °C 600 A
Rated Insulation Voltage (U_i):

acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V
acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (U_imp):

Main Circuit 8 kV
Mechanical Durability:

3 million
Maximum Mechanical Switching Frequency:

300 cycles per hour
Coil Operating Limits:

(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)
Rated Control Circuit Voltage (U_c):

50 Hz 100 ... 250 V
60 Hz 100 ... 250 V
DC Operation 100 ... 250 V
Coil Consumption:

Holding at Max. Rated Control Circuit Voltage 50 Hz 12 V·A
Holding at Max. Rated Control Circuit Voltage 60 Hz 12 V·A
Holding at Max. Rated Control Circuit Voltage DC 5 V·A
Pull-in at Max. Rated Control Circuit Voltage 50 Hz 955 V·A
Pull-in at Max. Rated Control Circuit Voltage 60 Hz 955 V·A
Pull-in at Max. Rated Control Circuit Voltage DC 895 V·A
Operate Time:

Between Coil De-energization and NC Contact Closing 45 ... 55 ms
Between Coil De-energization and NO Contact Opening 48 ... 58 ms
Between Coil Energization and NC Contact Opening 45 ... 115 ms
Between Coil Energization and NO Contact Closing 50 ... 120 ms
Connecting Capacity Main Circuit:

Bar 47 mm²
Rigid Al-Cable 2x240 mm²
Rigid Cu-Cable 240 mm²
Connecting Capacity Auxiliary Circuit:

Flexible with Ferrule 2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²
Flexible 2x0.75 ... 2.5 mm²
Solid 2 x 1 ... 4 mm²
Stranded 2 x 1 .... 4 mm²
Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Terminal Type:

Main Circuit: Bars
